Argo CD SSO Configuration

The Akuity Platform allows you to configure a single SSO provider for Argo CD, such as GitHub, SAML, or any other supported providers, ensuring secure user access to your Argo CD instance. This guide provides a step-by-step approach to setting up Single Sign-On (SSO) for Argo CD using the Akuity Platform.

info

Argo CD SSO is available in all Professional and Enterprise plans. If you would like to have an SSO configured specifically for your Organization, it is recommended to use the Akuity Platform SSO.

Configuring SSO

1. In your Argo CD Instance, go to Settings.

2. In the left panel, search for Security & Access and go to SSO Configuration.



3. Click on Add new connector and select your desired Type.



note

If you don't see your desired connector type in the configuration, it is recommended to use the YAML Editor for advanced configurations.

SAML

4. Register a New SAML Application:

   • In your SAML Identity Provider (IdP) portal (e.g., Okta, Microsoft Entra ID, or Auth0), create a new SAML application.
   • Provide a name (e.g., "Argo CD") and configure the Single Sign-On URL (or ACS URL) to point to the /api/dex/callback endpoint of your Argo CD URL (e.g., https://argocd.example.com/api/dex/callback).
   • After creating the application, download the SAML metadata file from your IdP. This metadata file will contain necessary information like the Entity ID, SSO URL, and the public certificate needed for SAML authentication.

5. Store your SSO URL and Public Certificate in a secure location since you'll need both in the next steps.

6. Paste your SSO URL and Publc Certificate (not Base64 encoded) in the connector along with the username attribute and email attribute, and click Add

7. Finally, click Save in the top-right corner.



Google

4. Set Up the OAuth Consent Screen:

   • Go to the OAuth Consent Screen in the Google Cloud Console. If you haven't configured it yet, select Internal or External and click Create.
   • Provide a name for your login app, a user support email, and add Authorized domains (e.g., example.com to allow all users with @example.com to log in).
   • Optionally, add an app logo and other information for a customized login experience.
   • Save and proceed to the Scopes section to add .../auth/userinfo.profile and openid scopes. Review and finalize your setup.

5. Store your Client ID and Client Secret in a secure location since you'll need both in the next steps.

6. Paste your Client ID and Client Secret in the connector and click on Add

7. Finally, click on Save in the top right corner.



Fetching Google groups

To fetch Google Workspace groups, Dex's Google connector needs a Google Cloud service account with domain-wide delegation, and its JSON key file. To set these up:

• Create a service account and JSON key (more on managing keys)
• Grant domain-wide delegation with the scope https://www.googleapis.com/auth/admin.directory.group.readonly
• See the Dex Google connector documentation for the connector options

On the Akuity Platform, you do not mount the key file yourself:

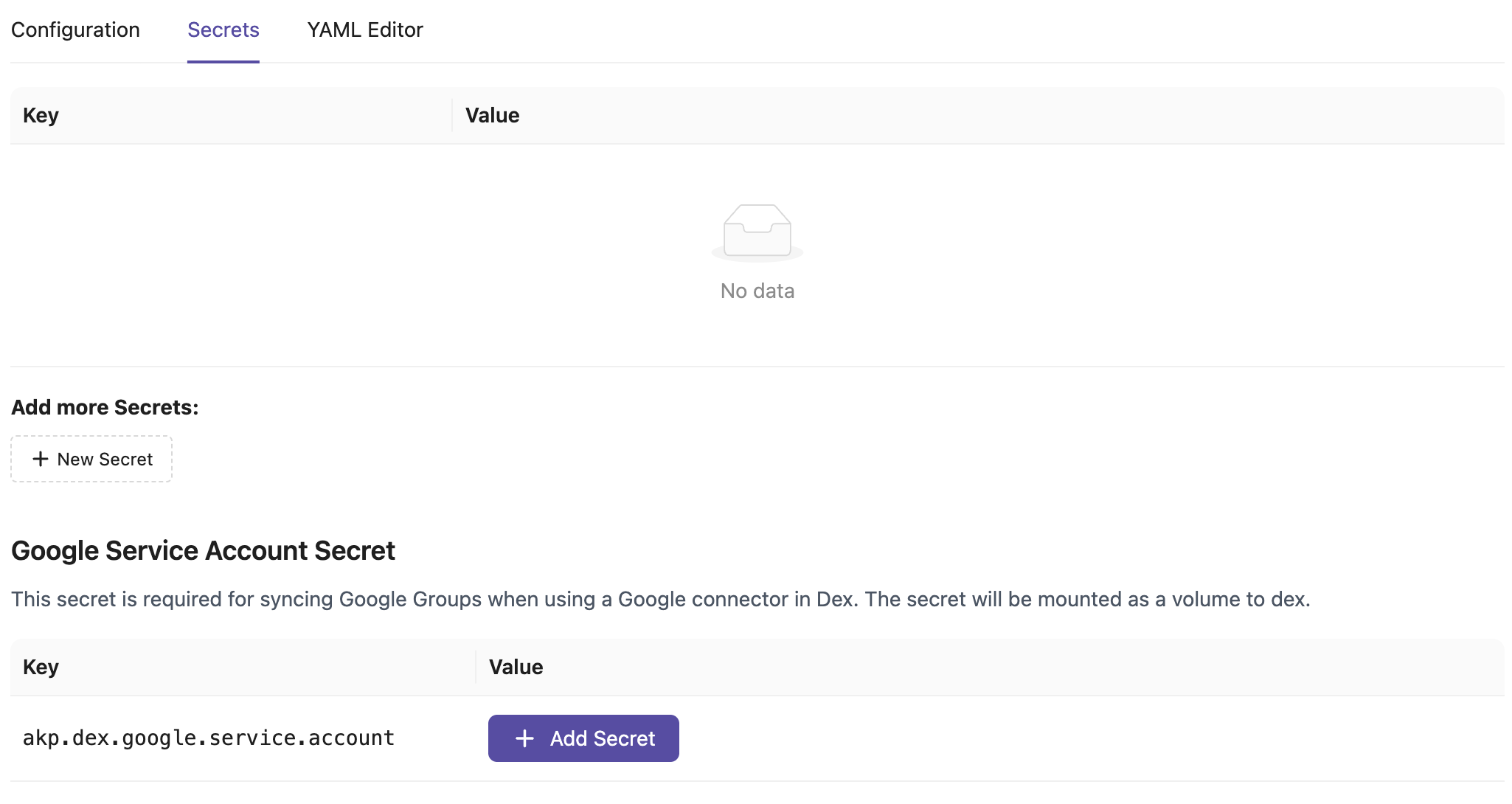

1. In the SSO Configuration, open the Secrets tab. Under Google Service Account Secret, click Add Secret and paste the full contents of the service account JSON key. It is stored under the secret key akp.dex.google.service.account.



2. In the YAML Editor, set serviceAccountFilePath in the Google connector to any value. The Akuity Platform mounts the key into Dex and replaces this value with the correct path:

   connectors:
     - type: google
       id: google
       name: Google
       config:
         clientID: <client-id>
         clientSecret: $dex.google.clientSecret
         serviceAccountFilePath: googleAuth.json  # any value; replaced by the Akuity Platform
         domainToAdminEmail:
           "*": admin@example.com

note

Setting serviceAccountFilePath without the akp.dex.google.service.account secret causes the configuration to be rejected.

When using the Terraform provider, set the secret in argocd_secret of the akp_instance resource, for example "akp.dex.google.service.account" = file("google-sa.json"), and the connector in argocd_cm["dex.config"].

GitHub

4. In GitHub, register a new application. Go to Settings > Developer Settings and create a new GitHub App. The callback address for the GitHub App should be the /api/dex/callback endpoint of your Argo CD URL (eg. https://argocd.eg.com/api/dex/callback)

5. Store your Client ID and Client Secret in a secure location since you'll need both in the next steps.

6. Paste your Client ID and Client Secret in the connector and click on Add

7. Finally, click on Save in the top right corner.



note

Once your connectors have been added and saved, you can also use the YAML Editor to perform advanced configurations.

8. In order to validate, open a new browser and enter your ArgoCD Instance URL: https://<my-argo-cd-instance-url>.



9. Click on SSO LOGIN and log in to your Argo CD instance.

Congratulations! You've successfully set up the Argo CD SSO configuration using Akuity Platform.
